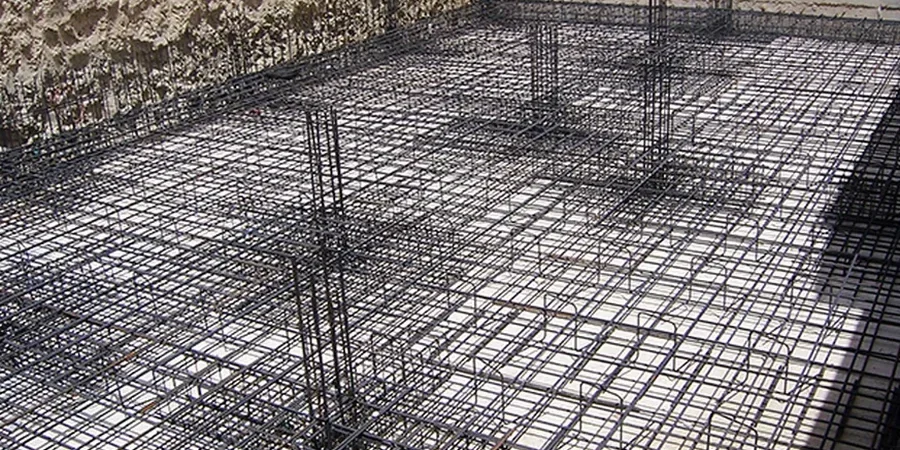

London, Ontario sits at an elevation of roughly 251 meters above sea level, straddling the Thames River where post-glacial silts and clays create a patchwork of highly variable bearing conditions. With over 422,000 residents and a construction sector pushing into former agricultural land and infill sites south of Highway 401, the demand for solid foundation solutions has never been sharper. A raft or mat foundation design bridges the gap between unpredictable soil performance and structural safety by distributing building loads across a continuous reinforced slab. When isolated footings would require excessive excavation or risk differential settlement in the Leda-type clays found in pockets across the city, the mat slab becomes the rational choice. Our analytical approach integrates site-specific stratigraphy with the loading demands of low-rise commercial buildings, multi-unit residential blocks, and industrial warehouses common to the London region. The design process moves from borehole logs to finite element modeling, ensuring the slab thickness, reinforcement layout, and subgrade preparation align with the actual soil stiffness measured on your lot. For projects where the upper crust of weathered till is thin, we often combine the mat solution with ground improvement options such as stone columns to homogenize the bearing stratum before concrete placement.
A properly designed mat foundation turns variable London till into a unified bearing platform, cutting differential settlement by up to 70 percent compared to isolated footings on the same profile.
Our approach and scope
Site-specific factors
The Port Stanley Till that underlies much of London is a dense, overconsolidated deposit, but its upper weathered zone and the discontinuous sand and silt lenses within it introduce a risk that catches many designers off guard: non-uniform bearing stiffness across a single building footprint. Combine that with the city's location in a moderate seismic zone, where the NBCC spectral acceleration Sa(0.2) reaches approximately 0.25 g, and a poorly conceived mat foundation can amplify differential movement during a long-period event originating from the Southern Great Lakes Seismic Zone. The most costly failures we have reviewed stem not from outright bearing collapse, but from inadequate rigidity in the raft itself—too thin a slab, insufficient reinforcement at column connections, or neglect of edge curling stresses. A 2010 warehouse expansion near the airport, for instance, required costly slab jacking after the original design underestimated the compressibility of a buried organic layer at 4 meters depth. Our design protocol mandates at least one deep borehole per 400 square meters of footprint in London's glacially disturbed terrain, combined with laboratory consolidation tests on undisturbed samples to constrain the settlement envelope. If the profile reveals sensitive clay or loose water-bearing silt, the mat design is re-evaluated with a liquefaction assessment and potential ground treatment before proceeding to structural detailing.
Applicable standards
NBCC 2020 (National Building Code of Canada) – structural loads and seismic provisions, CSA A23.3:19 – Design of Concrete Structures, ASTM D1194 / D1195 – Plate load test procedures (referenced for subgrade modulus verification)
Other technical services
Geotechnical investigation for mat design
Program of boreholes, CPT soundings, and sampling to define the stratigraphy and engineering properties of the bearing stratum across the building footprint, including consolidation and swell testing on London clay samples.
Structural design and detailing of raft slab
Finite element modeling of soil-structure interaction to determine slab thickness, reinforcement layout, and stiffening beam geometry. Drawings sealed by a professional engineer registered in Ontario.
Construction-phase subgrade verification
On-site inspection and plate load testing during excavation to confirm that the exposed bearing surface meets the design assumptions for stiffness and compaction before the mud slab or waterproofing is placed.
Typical parameters
Quick answers
What is the typical cost range for a raft foundation design in London, Ontario?
For a standalone residential or light commercial building, the engineering design fee for a mat foundation in London typically falls between CA$1,460 and CA$5,730, depending on the complexity of the soil profile, the number of boreholes required, and the level of structural detailing. Large industrial or multi-story projects with challenging ground conditions will fall toward the upper end of the range due to the additional analysis for soil-structure interaction and reinforcement optimization.
At what point does a mat foundation make more sense than strip footings in London's soils?
A mat foundation becomes the logical choice when the allowable bearing pressure of the near-surface soil drops below about 100 kPa, or when the calculated differential settlement between isolated footings exceeds 12 mm over a span of 6 meters. In London, this frequently occurs on the compressible silty clays of the Thames River floodplain and on sites where the weathered till zone extends deeper than 2.5 meters, making individual footings uneconomical to deepen.
Does the design account for frost heave in the London area?
Yes, every raft foundation design we produce for London incorporates the 1.2 meter minimum frost penetration depth specified for the region. The underside of the mat is placed below this depth, and the subgrade is prepared with free-draining granular fill to interrupt capillary rise. In silty soils prone to ice lensing, we specify an additional 150 mm of compacted clear stone beneath the mud slab to create a capillary break, effectively decoupling the raft from frost-susceptible ground movements.
